Mixed Use Urban Block

Part 1 Project 2011
Alexander Cameron
 Robert Gordon University | UK
Analysis of the site’s local urban environment highlighted the mixed-use pattern of occupation that has become integral to the Rosemount Area of Aberdeen City. The site is located on the periphery of the city centre at the historic heart of the Rosemount Area. In addition, the site holds a prominent position along the area’s principal axis of circulation, which also provides a platform for the majority of the area’s commercial and social exchange. Local amenities are plentiful and offer the elderly residents an accessible means by which to maintain social interaction and engage with the local community.

The proposed mixed-use urban block aims to reinforce the established urban usage that the immediate area hosts. At street level is an adaptable collection of commercial premises, and above is a collection of sheltered housing apartments. At basement level is car parking and additional storage space for each apartment, and sufficient space for a communal heating plant. All apartments are accessed via a principal staircase which leads onto a central corridor that serves every apartment on each floor. These communal spaces seek to encourage informal meeting and social acknowledgment between neighbours. Spatial composition, material, and admittance of light through the external voids which penetrate into the depth of the building, are the primary elements by which it is hoped that feeling is roused with the individuals using and living within the proposed building.

Surrounding buildings of comparable prominence demonstrate a carefully refined treatment of the elevation where a junction between the principal street and an adjoining street occurs. This apparent adornment of corner junctions in the immediate area, has informed the conception of the proposed urban block as a building that presents two distinct spatial volumes - the urban block containing the accommodation, and secondly the adjoining u-channel glass element containing the staircase. These two volumes culminate at the principal street corner which the site addresses, and seek to heighten the experience of transition as one passes from the adjacent thoroughfare into the privacy of their apartment.
Alexander Cameron
Tutor(s)
Samuel Penn
2011

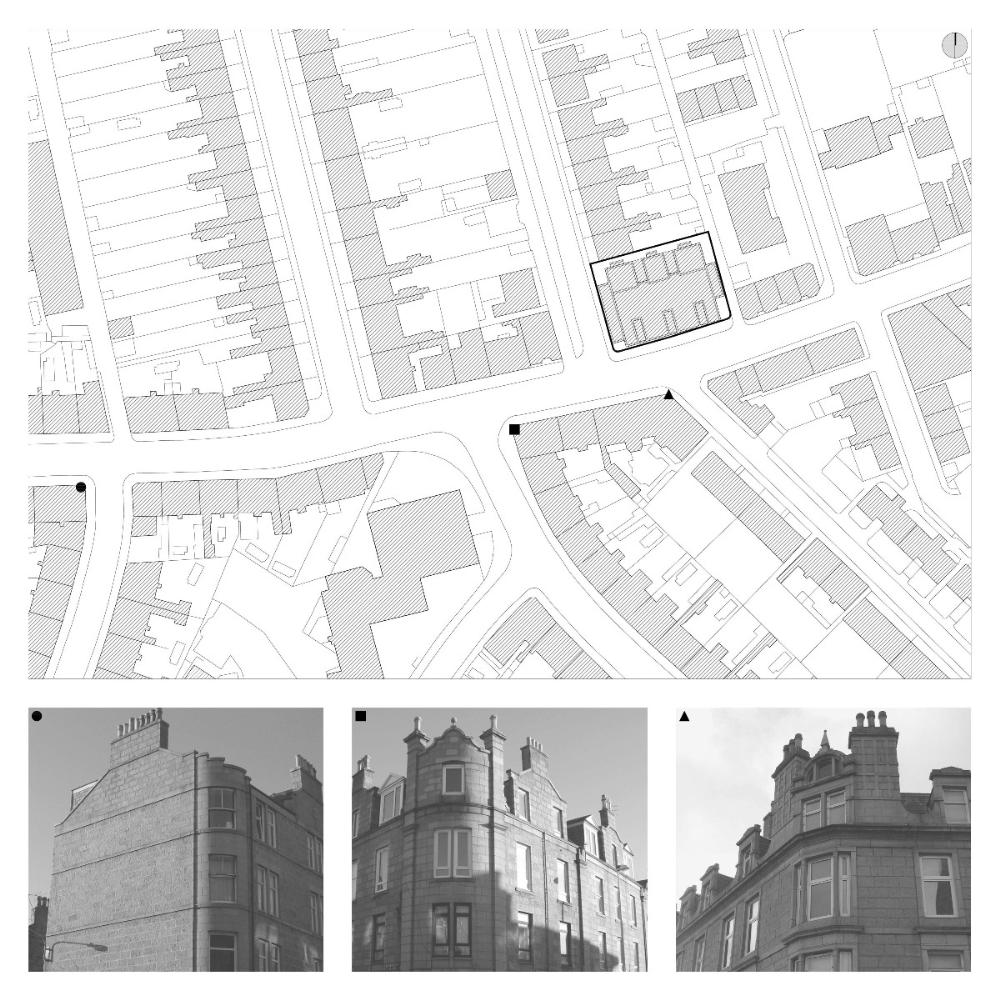

Location plan: examples of adornment at corner junctions displayed on the elevations of surrounding buildings.
Design development, from bottom: investigative study into the implications regarding the treatment of the site’s principal corner. Site as existing shown in red. Preliminary massing studies.

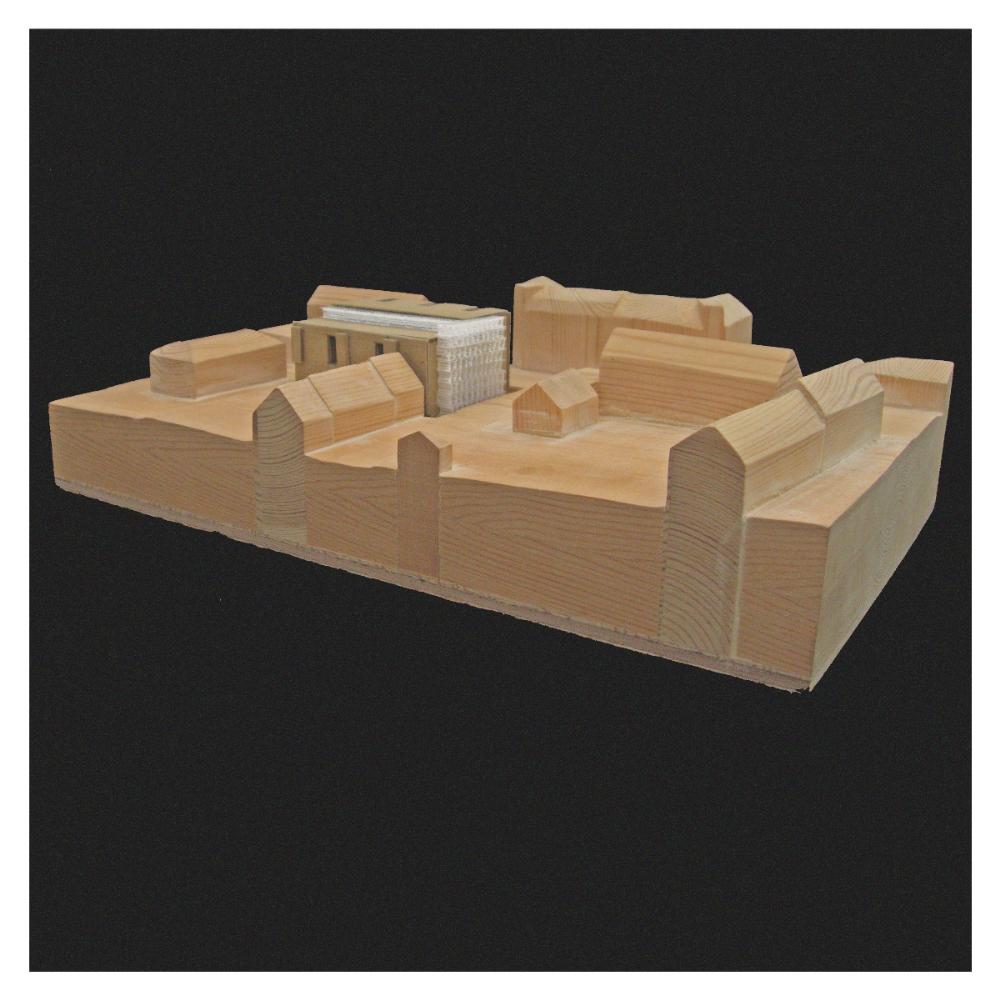

Site model with proposed urban block massing model.

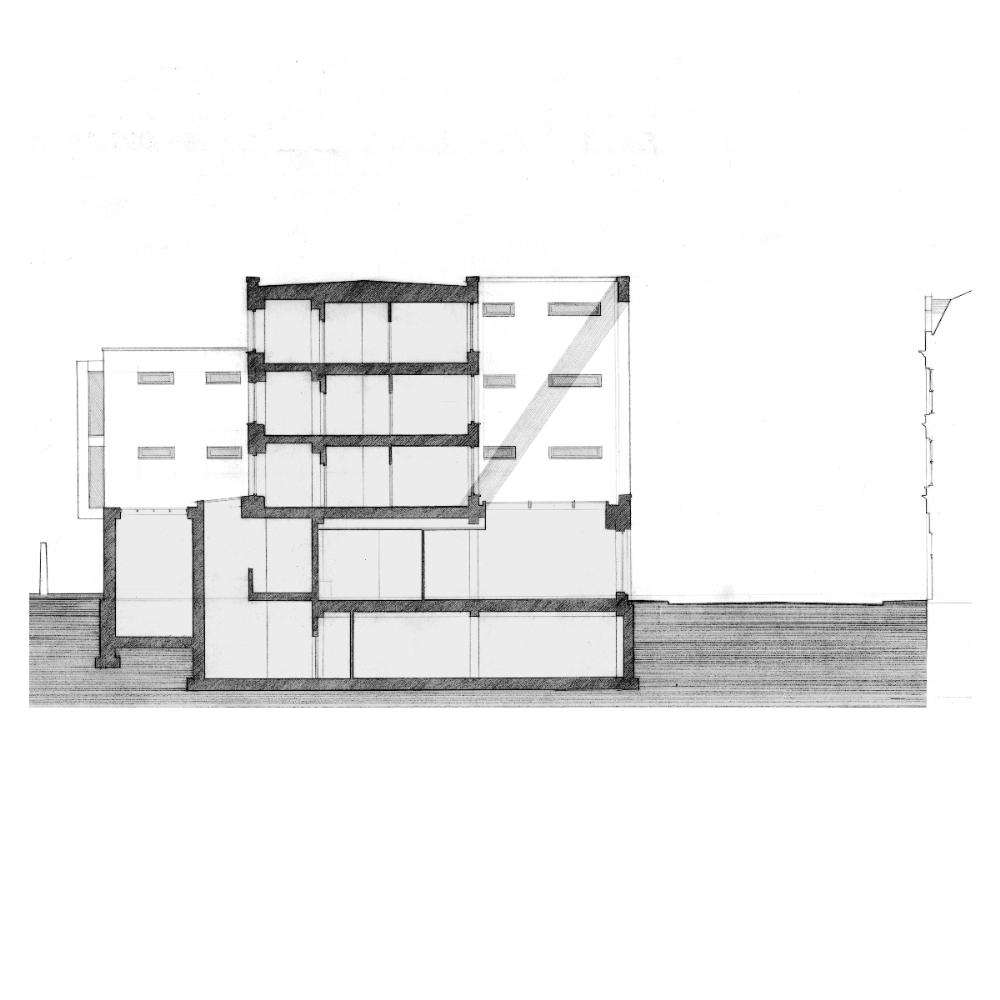

Short section: external voids shown.

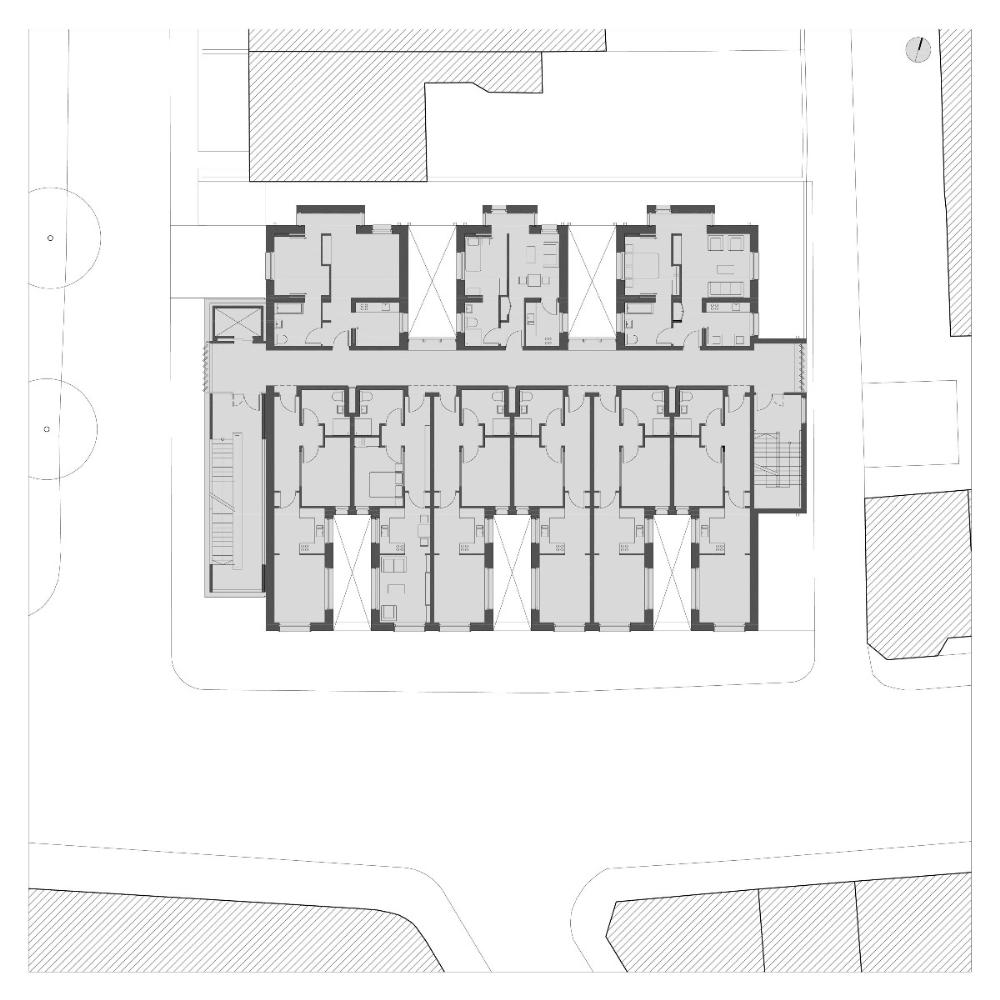

First Floor Plan / Site Plan.

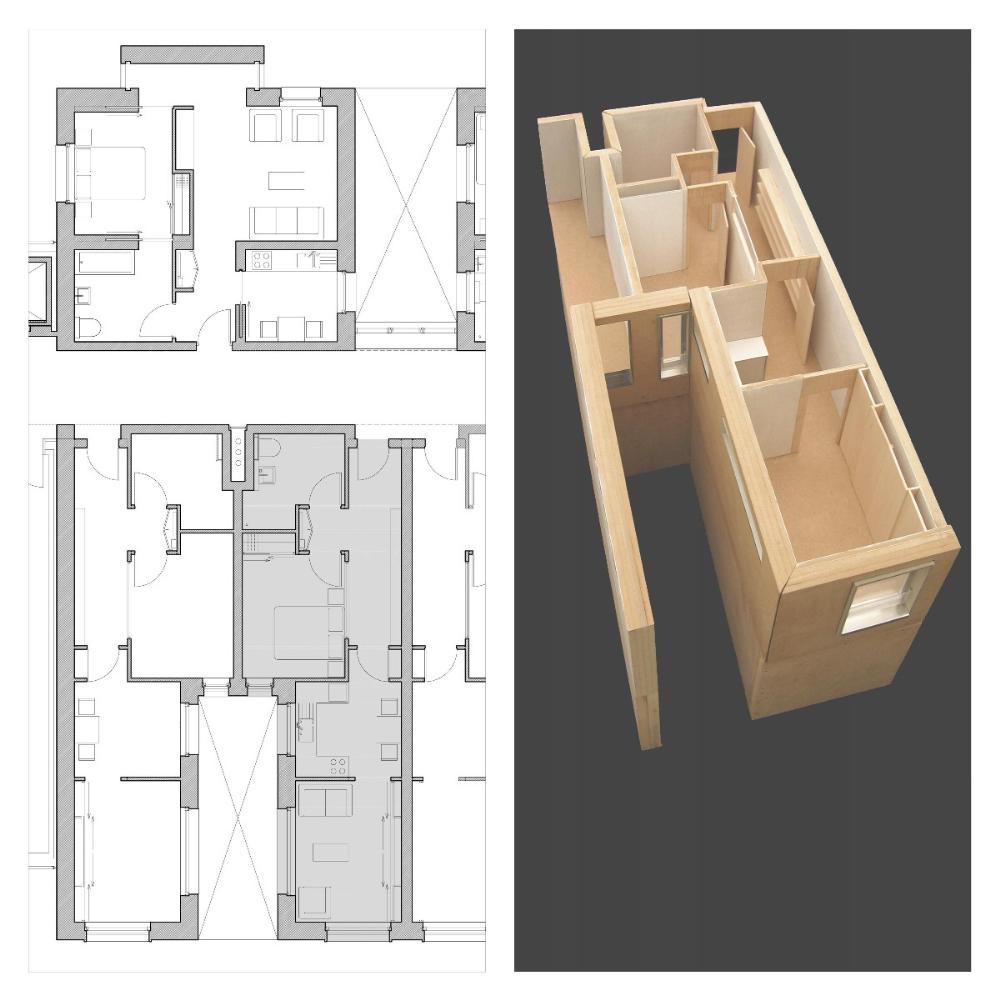

Furnished floor plans, longitudinal apartment model.

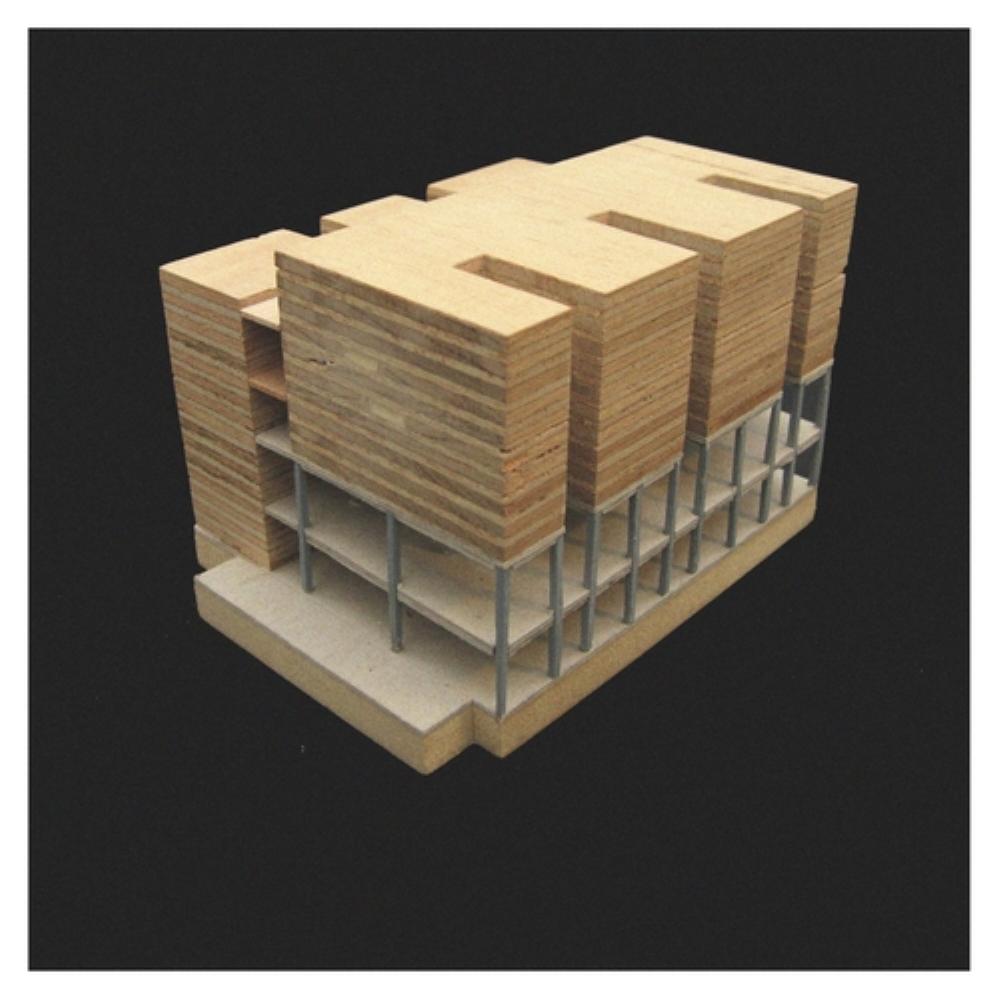

Conceptual model of structural systems.

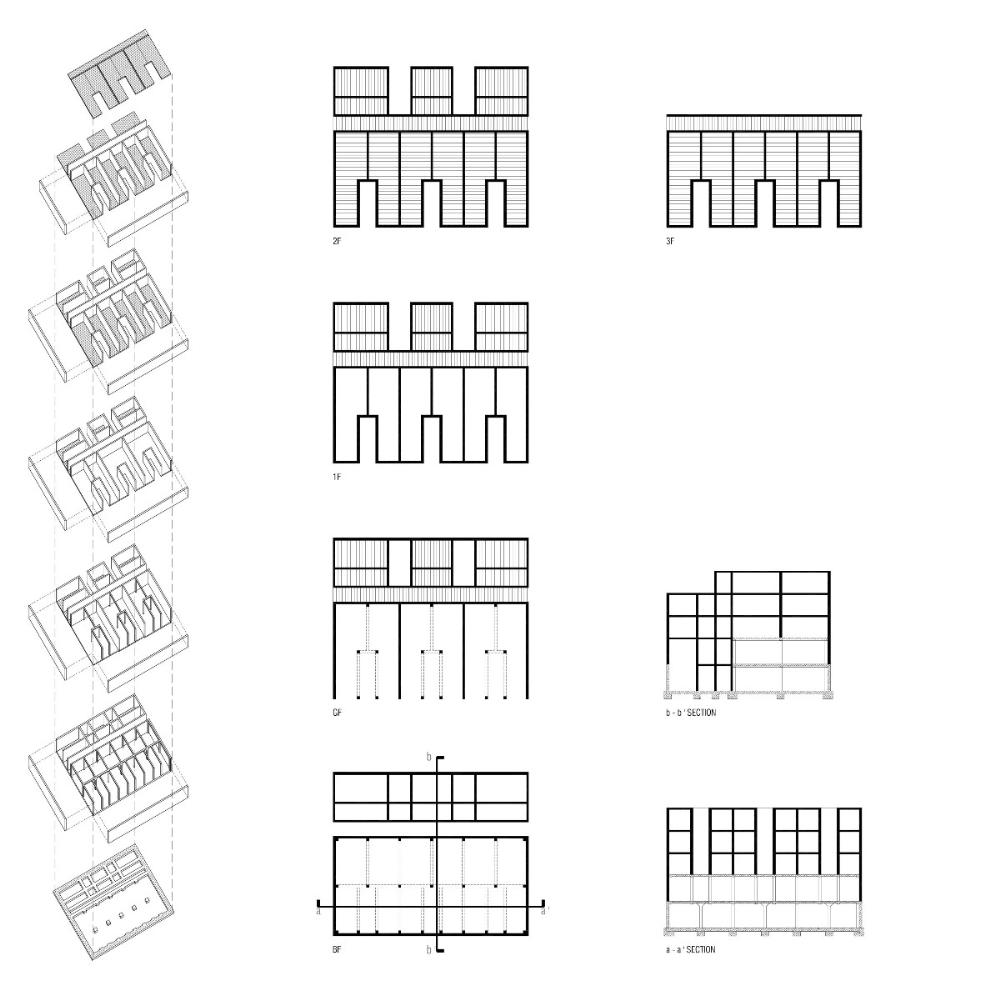

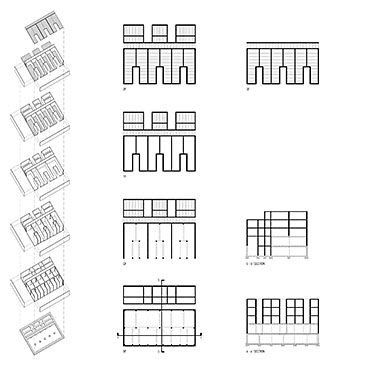

Investigative preliminary study into structural systems and associated load paths and spans.

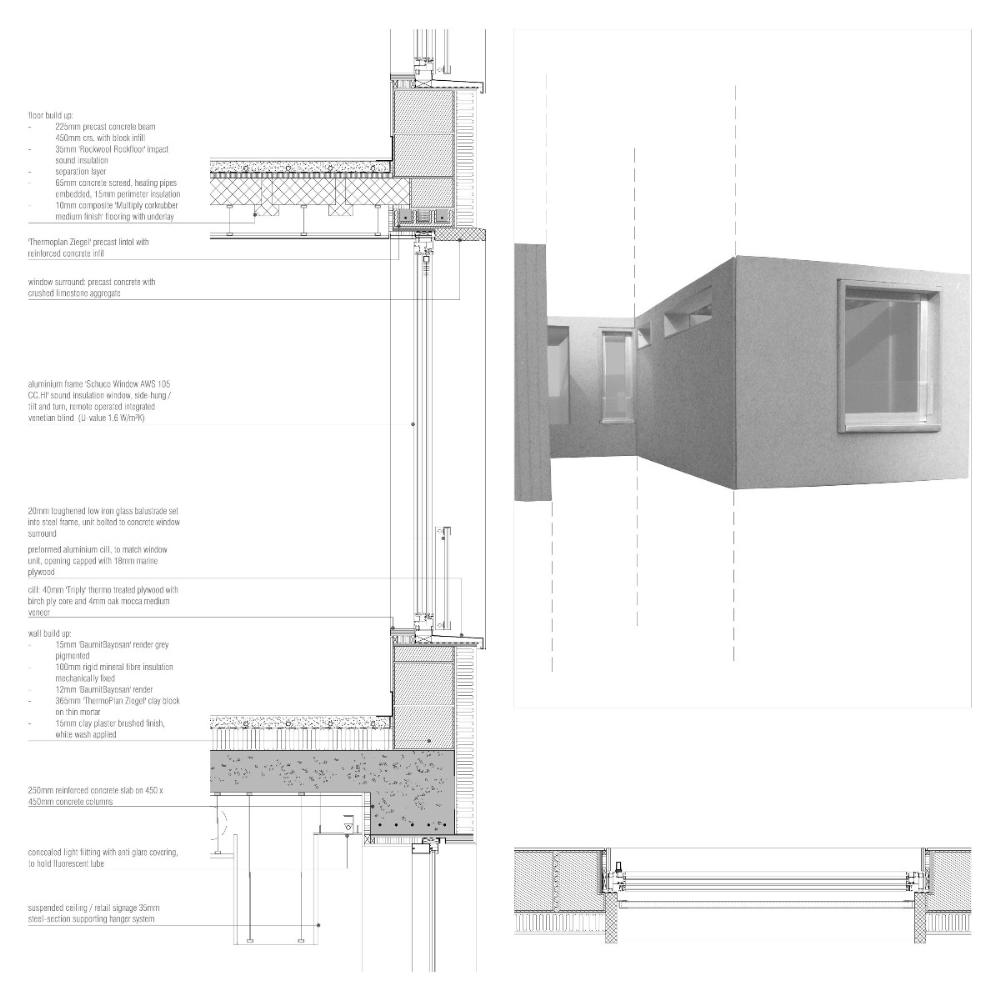

Constructional Detail Accommodation Structure: Opening vertical and horizontal section. Partial elevation model of apartment exterior exploring material usage.

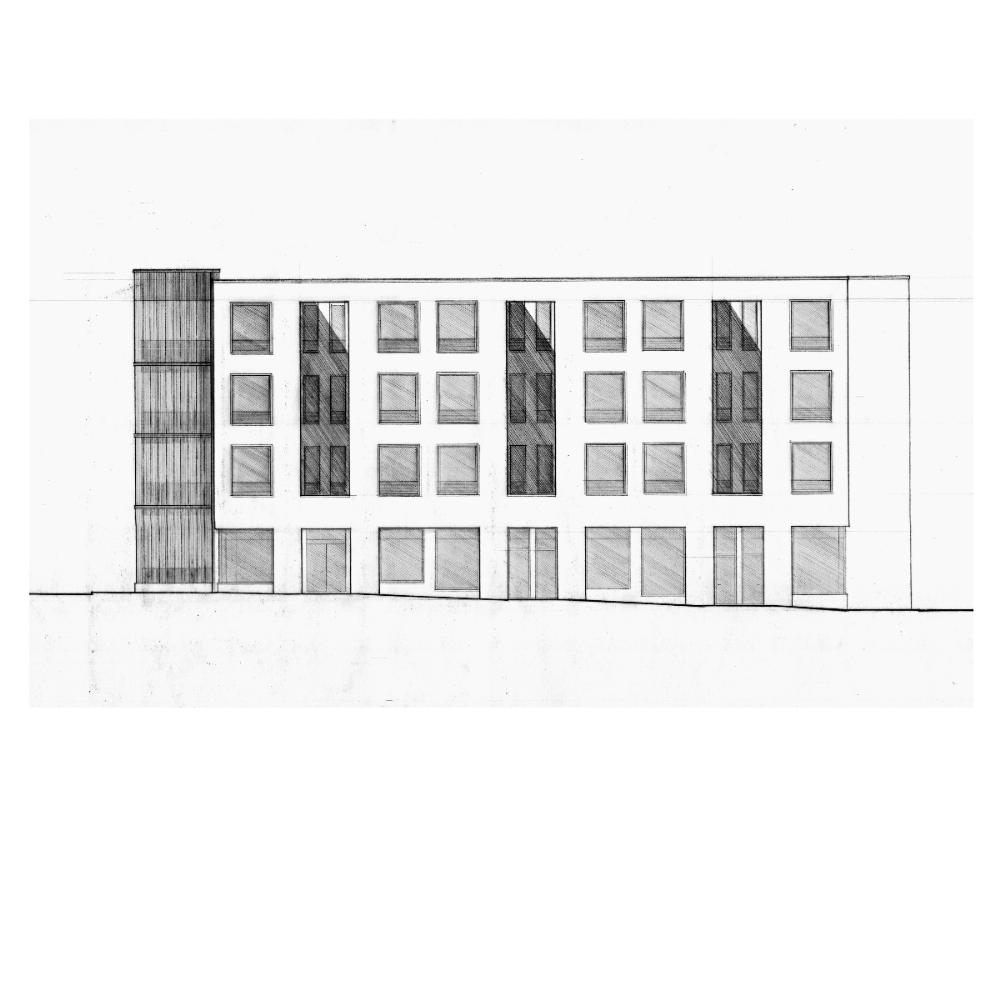

South Elevation: proposed urban block comprising - accommodation structure, and adjoining staircase structure encased in U-channel glass.

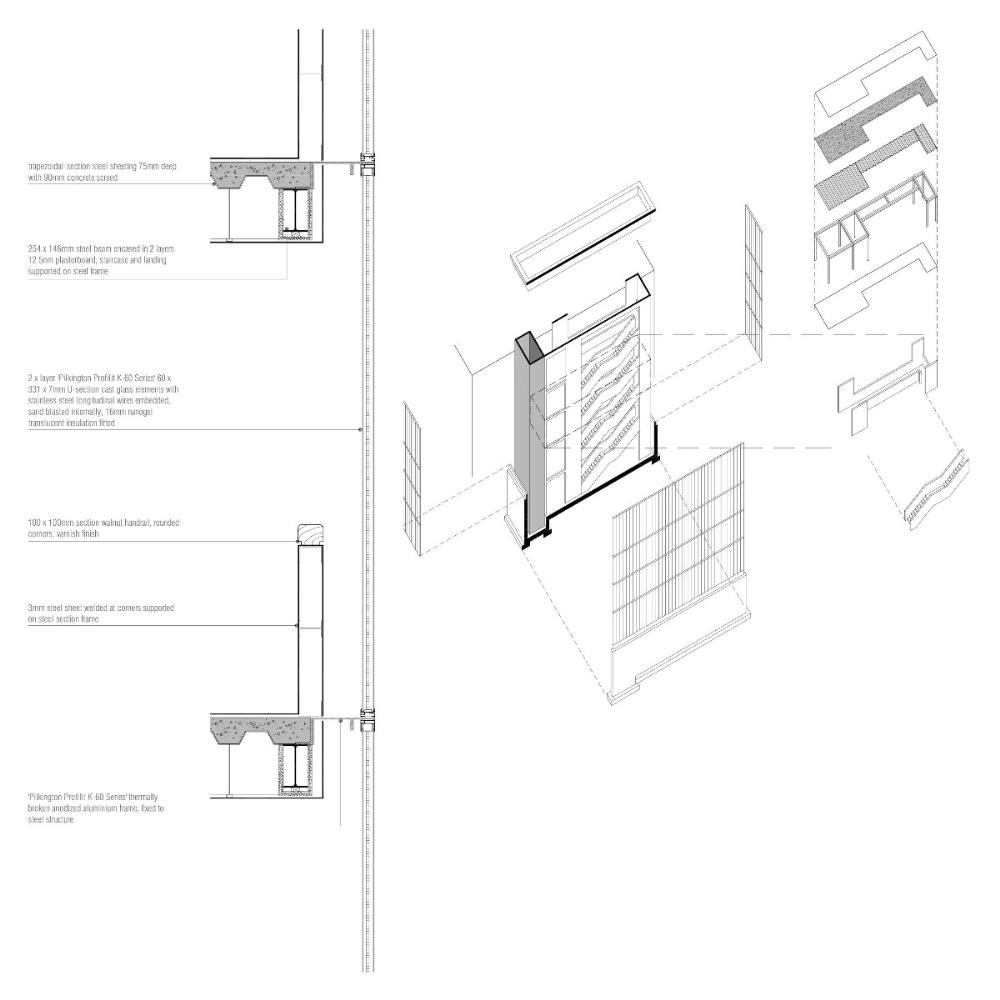

Constructional Detail Staircase Structure. Exploded isometric showing principal construction systems and prefabricated elements.

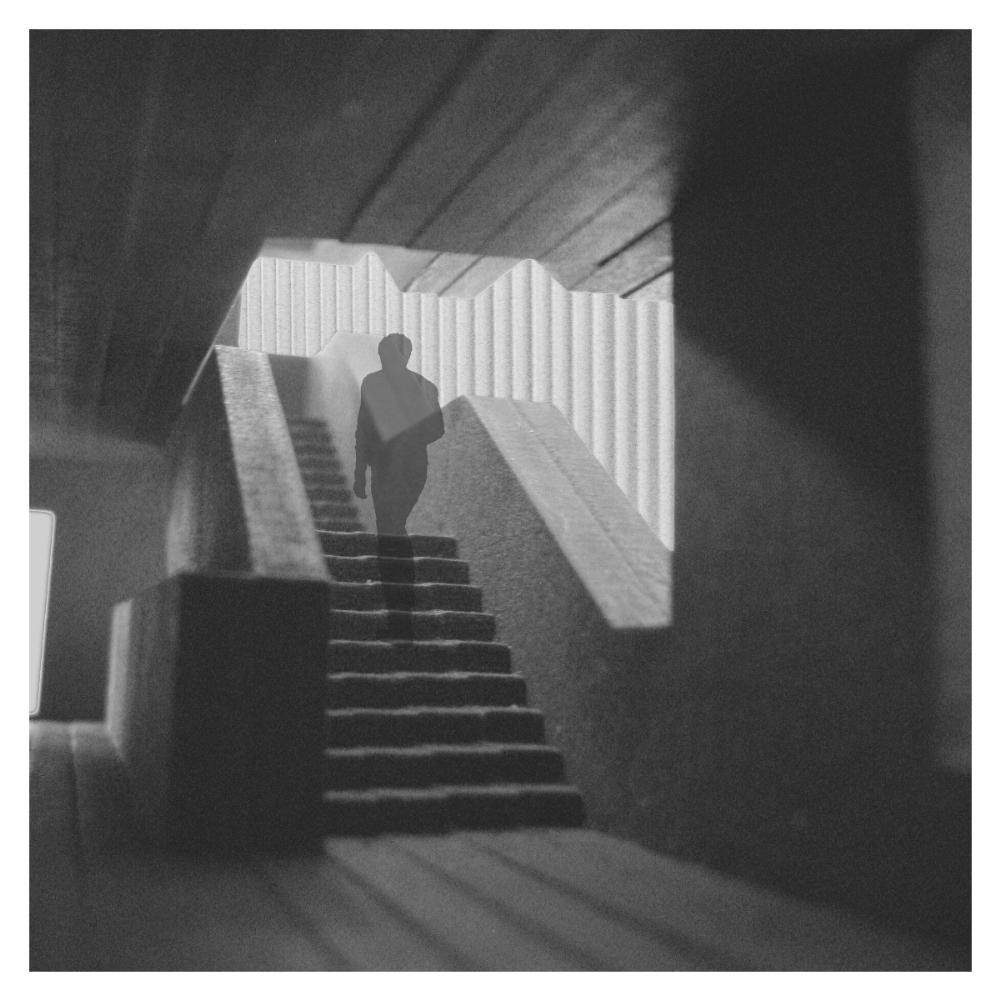

Interior view of staircase landing space: as one ascends from the external thoroughfare towards the containment of a personal space.

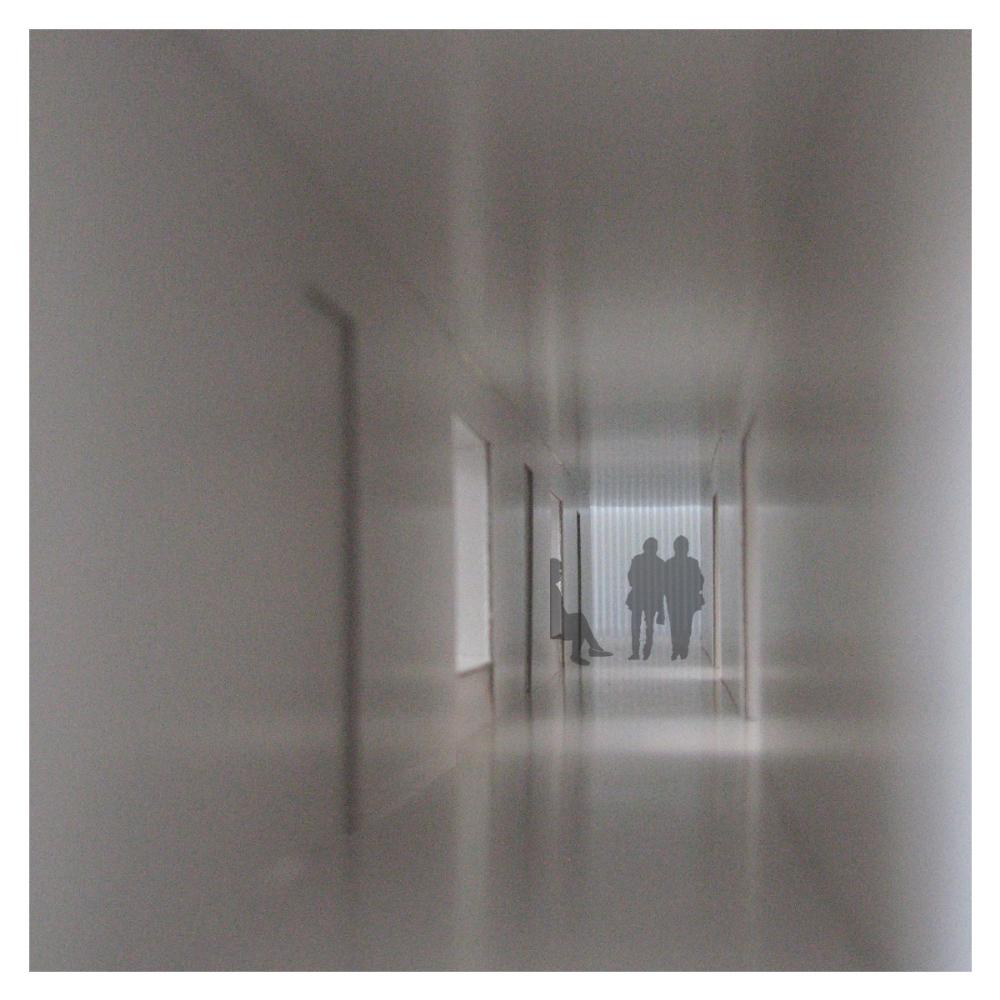

Interior view of central corridor: a space for informal meeting and acknowledging neighbours in passing.
Interior view of longitudinal apartment living space: large window opening with external glass balustrade provides residents with good light levels and views onto adjacent street, daylight and ventilation supplemented by high level openings onto external

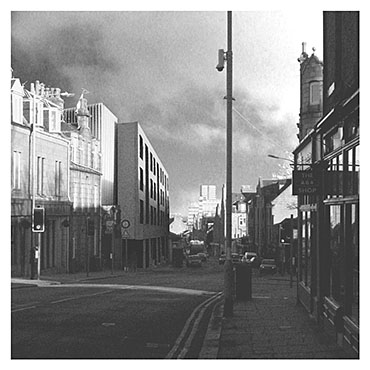

External view of proposed urban block: two distinct spatial volumes presented to the street at the principal street corner which the site addresses.
